SiegelGlaze B75

High Performance Hot Melt Butyl IGU Sealant

Product Benefits

Exceptional rheological properties for all lines and applicator types.
Rapid working time, reducing cooling time and line speeds.
Approved for use with low E coating systems.
Exceptionally low moisture and argon permeation rates.
Excellent thermal conductivity rates.
Permanent superior adhesion to spacer bars and glass.

Product Description

SiegelGlaze B75+ is a high-performance butyl hot melt sealant for sealing insulated glass units. Being free from fillers and extenders, this formula is engineered to provide superior bonding and market leading IGU transmission performance.

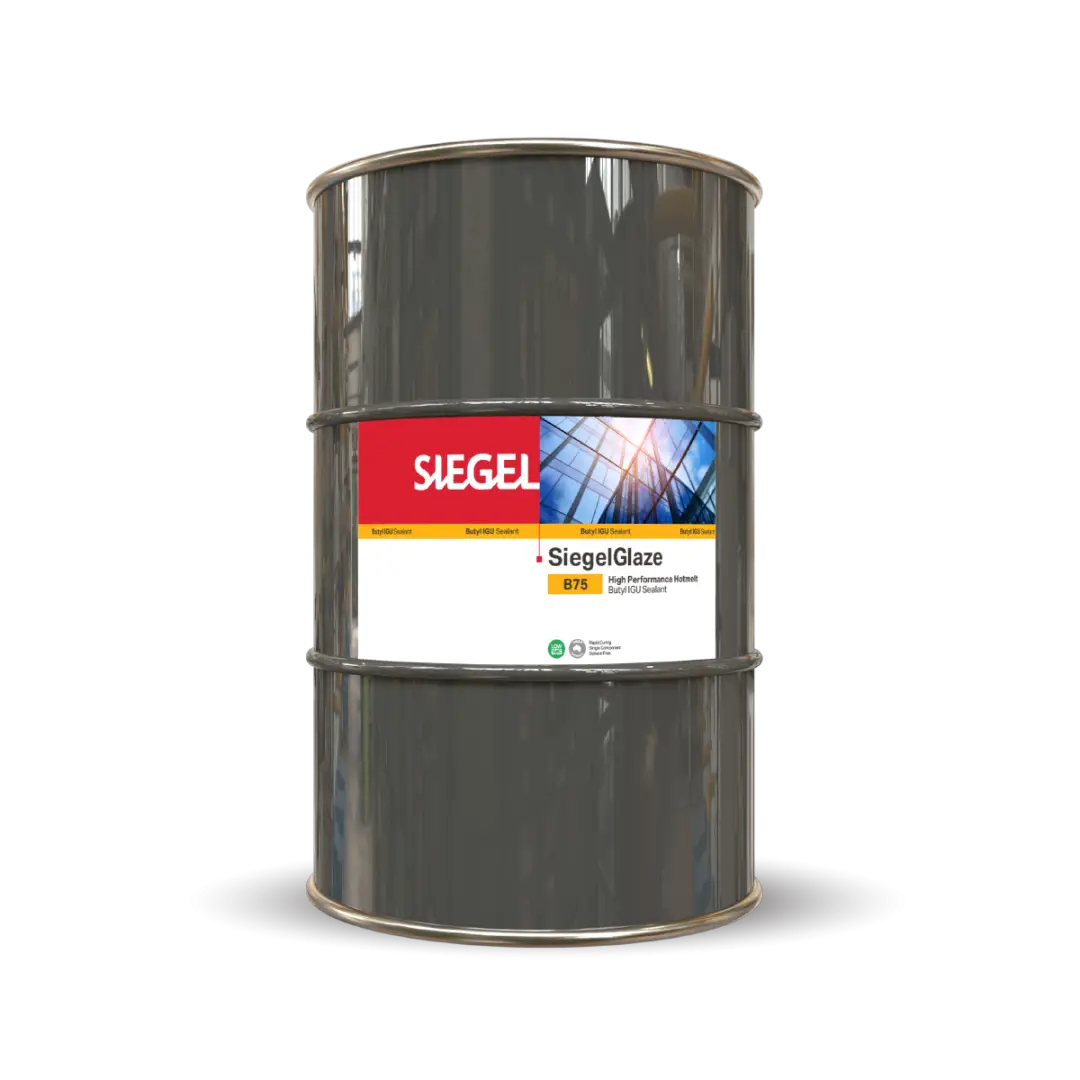

Packaging:
6.5kg block
210kg drum

Applications

SiegelSeal B75 can be used through all known types of hot melt sealant application machines.

Any coatings must be edge deleted before the manufacture of IG units to allow full contact of the sealant to a clean glass surface. It should not be used in non-edge deleted applications unless approved by the glass supplier. The workplace should be kept clean to avoid contamination of glass or spacers during assembly, and the ambient temperature of the glass and spacers is best kept above +15°C for optimum results. Contact between SiegelSeal B75 hot melt butyl edge seal and any solvent or oil containing glazing compound should be avoided.

Technical Data


Sealant Type	Hot Melt Butyl Sealant
Colour	Black
Density	1.18g/ml	ASTM D792
MVTR (Moisture Vapor Transmission Rate)	0.04 ±0.01	(gH20)/m2 x 24h x 2mm
Argon Permeability Rate	2 ±0.5 x 10-3 x g / (m2 x h)
Thermal Conductivity	0.22 W / mK	ASTM C518
RT Overlap Shear Strength	3 bar	ASTM D-1002
Melting Point	110°c
Application Temperature	180°c to +200°c
Organic Solvent %	0%
Packaging	6.5kg block / 210kg drum
Shelf Life	2 years if unopened
Line Types	Automatic and Manual
